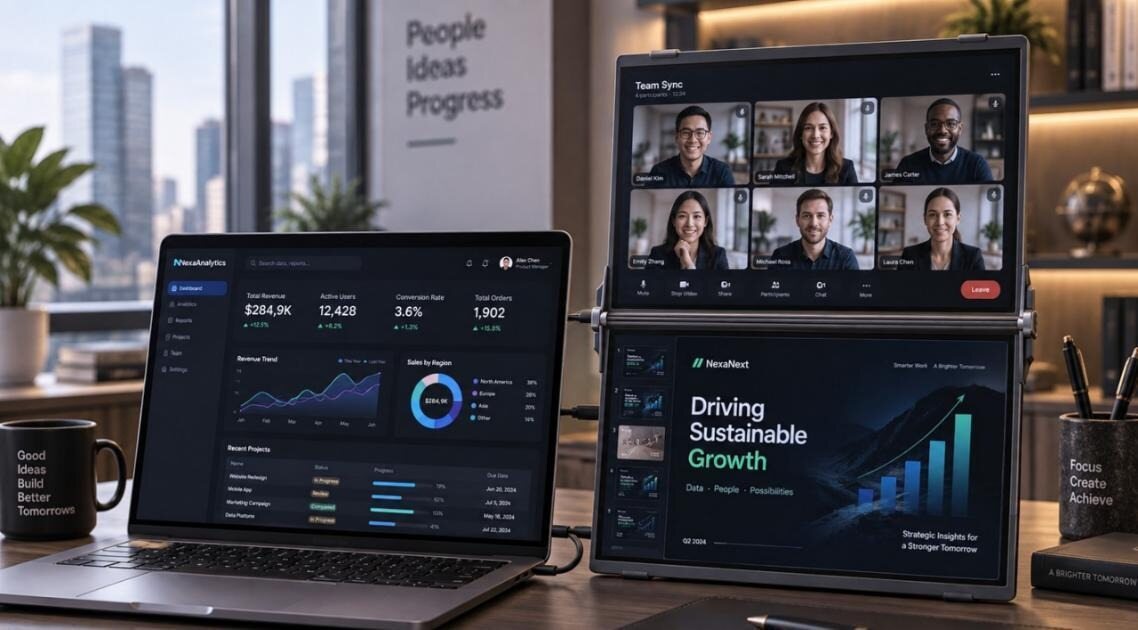

W8156IP02 - view 1
P Series

W8156IP02

Specifications

Interfaces

Ports
MINI HDMI*1, Type-C*2

Additional Specifications

Screen size and curvature
15.6 "
Backlight
ELED
Panel type
IPS
Aspect ratio
16:9
Resolution
1920*1080
Refresh rate
60Hz
Viewing angle
178°H/178°V
Active display area
344.16mmH ×193.59mmV
Minimum brightness
240cd/M²
Typical brightness
300cd/M²
Static contrast ratio
800:1
Dynamic contrast ratio
1,000,000:1
Color gamut 2
NTSC CIE 1931Area Ratio72%
Color temperature
6500/7500/9300K
Color depth
262K(6bit)
GTG response time
20ms(without OD)
Other features
dual-screen
Audio output
*1
Speakers
2W
Power supply type
External
Power supply
PD30W
Standby power consumption
≤0.5W
Low blue light
Support
Overdrive
Support
Adaptive Sync
Support
HDR
Support
FPS/RTS modes
Support
HDCP
Support
Multi-screen collaboration
Support
Auto source switch
Support
Virtual crosshair
Support
Tilt
5~30°(±5°)/0〜315 °Rotate
Quick release
Support
Product Color
Gray
Dimensions (without Stand)
376.96*433.78*9.5mm(open) 376.96*216.49*19.2(close)
Dimensions (with Stand)
376.96*433.78*9.5mm(open) 376.96*216.49*19.2(close)
84 VESA
100*100(Optional)
User Manual
*1
Warranty Card
*1
AC Adapter
*1
Power Cord
*1
HDMI Cable
*1(Mini HDMI AdapterHDMI)
Type-C Cable
*1
Storage Temperature
-20℃-70℃
Operating Temperature
0ºC~45ºC
Operating Altitude
≤5000m
